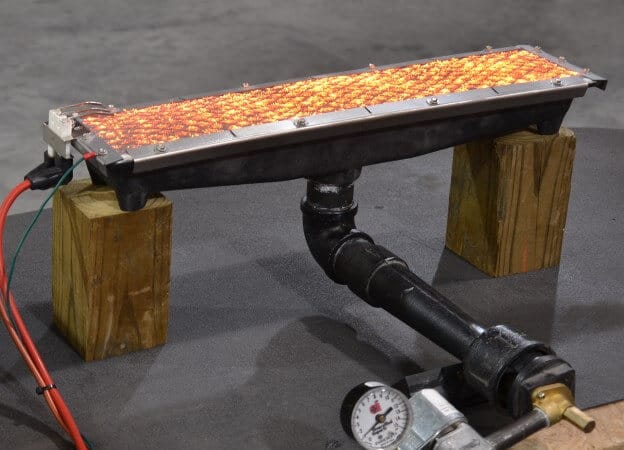

Project Description
Details
- Direct replacement for JFS series burners.
- Atmospheric or Premix gas infrared burner
- Durable and easily replaceable surface emitter
- Heavy duty cast iron
- Metal fiber doubles IR output vs ceramic tiles
- Low NOx and Low CO
- Simple modulation via adjustable orifice
- No flashback from any firing position
Specifications
| Model | Capacity | Dimensions (mm) | Weight |
|---|---|---|---|
| MFB-322 |
10k -100k BTU/hr (3 – 30 KW) |
555 x 80 x 105 | 13 lbs (6kg) |
| MFB-522 |
20k – 200k BTU/hr (6 – 60 KW) |
570 x 130 x 170 | 18 lbs (8kg) |

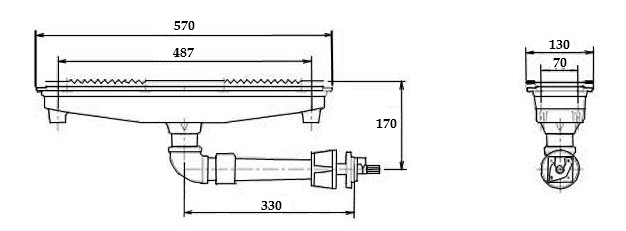

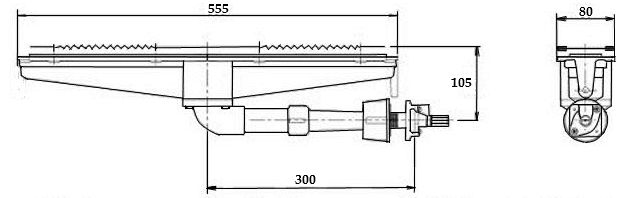

Schematic
